Quick Answer / Expert Verdict: In high-latitude regions where the sun sits lower on the horizon, fixed-angle brackets often lead to significant seasonal energy loss. Utilizing a specialized adjustable tilt solar mounting system allows commercial and industrial property owners to manually or seasonally alter panel angles, boosting annual photovoltaic generation by 15% to 25% compared to flush-mounted alternatives.
When designing commercial and residential solar installations far from the equator—such as in Northern Europe, Canada, or the northern states of the US—the angle at which sunlight strikes the photovoltaic modules changes dramatically between summer and winter. A fixed-angle solar roof mounting system compromises performance during shoulder seasons, forcing EPCs to seek flexible structural alternatives that capture optimal irradiance year-round.
As a global engineering manufacturer, Xiamen Sunforson Power Co., Ltd designs advanced, site-adapted structural solutions to solve these exact geographical challenges. In this technical article, we examine why adjustable tilt architectures are becoming the preferred choice for high-latitude solar developers looking to maximize their return on investment.

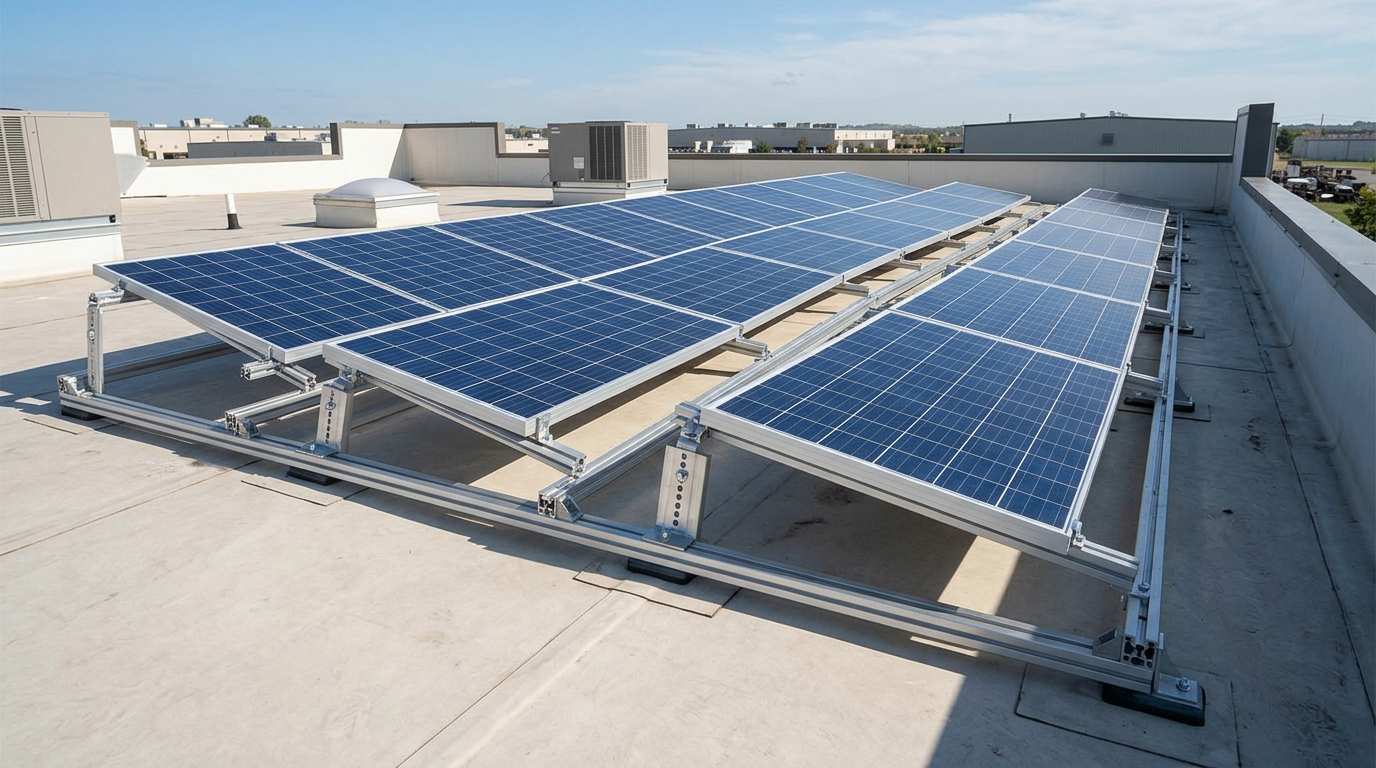

SunRack adjustable triangular tilt brackets on a commercial roof
The High-Latitude Challenge: Sun Angles and Irradiance
At latitudes above 45°, the sun's trajectory across the sky varies drastically across the four seasons. In mid-winter, the sun is very low, requiring a steep panel angle (often latitude plus 15°) to capture direct rays. Conversely, summer demands a much shallower angle to prevent reflection and maximize surface absorption.
If a commercial warehouse installs a standard, low-profile flat roof solar mount with a fixed 10° tilt, winter energy production plummets. Snow accumulation also becomes a severe hazard because low angles discourage natural sliding. An adjustable system solves both problems by allowing maintenance crews to elevate the modules during heavy winter months.
Engineering Features of an Adjustable Tilt Racking Structure
Designing a structure that can safely change angles while enduring high wind loads requires meticulous mechanical engineering. Sunforson’s adjustable tilt kits incorporate several high-performance features:
- Telescopic Rear Legs: Precision-drilled slide channels or telescopic supporting legs allow installers to shift between pre-set angles (e.g., 10-15°, 15-30°, or 30-45°) quickly using standard hand tools.
- High-Grade AL6005-T5 Aluminum: To ensure the adjustable joints do not seize up or corrode over decades of weather exposure, structural components are extruded from high-tensile aluminum with an anodized protective layer.
- Interlocked Stability: Even when adjusted to steeper winter angles, the structural rails remain cross-braced to prevent wind vibration and structural twisting under heavy gusts.
Comparison: Fixed vs. Seasonally Adjustable Roof Mounts
| Performance Metric | Fixed-Angle Roof Mount | Adjustable Tilt Roof Mount |
|---|---|---|
| Annual Energy Yield (High Latitudes) | Standard baseline | 15% to 25% higher annual output |
| Winter Snow Shedding | Poor (Requires manual snow removal) | Excellent (Steeper angle sheds snow naturally) |
| Initial Material Complexity | Simple, rigid structure | Includes multi-position telescopic legs |
| Best Application Area | Equatorial and low-latitude regions | High-latitude commercial rooftops and ground mounting systems |
Frequently Asked Questions (FAQ)
Q1: How often should the tilt angle be adjusted on these roof mounts?
For most commercial projects in high latitudes, facility managers adjust the tilt angle twice a year—increasing the angle in autumn to catch low winter sun and flattening it in spring to optimize for long summer days.
Q2: Do adjustable brackets compromise wind resistance?
Not when engineered properly. Sunforson’s adjustable triangles undergo rigorous Finite Element Analysis (FEA) to ensure that locking bolts and telescopic arms maintain structural integrity even when locked at steep angles in high-wind zones.
Optimize Your Energy Harvest with Custom Engineering
Stop leaving energy on the table with rigid mounting setups. Partner with Sunforson to deploy high-efficiency tilt-adjustable structures tailored to your project's precise latitude and meteorological profile.
